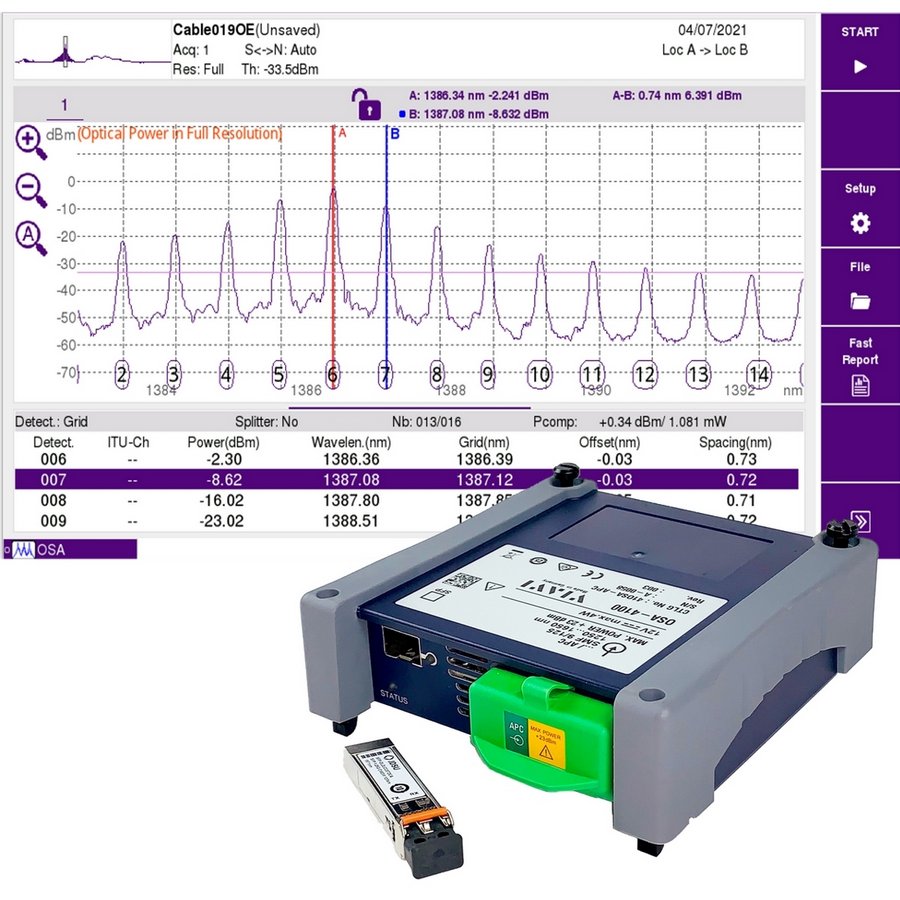

4100-Series OSA Modules

Nano OSA Modules – 4100-Series for T-BERD/MTS-2000, -4000 V2, -5800, CellAdvisor 5G and OneAdvisor 800 Platforms.

Compact Nano OSA™ modules offering high resolution measurement over full wavelength band for channel verification and spectral analysis in a field rugged package for the deployment of any WDM service.

Description

The Nano OSA modules are the first optical channel verifier (OCV) and optical spectrum analysis (OSA) modules to offer high-resolution performance coupled with full band coverage for dense WDM channel analysis for today and tomorrows Metro and Access network applications.

Part of the 4100 series modules can be paired with multiple VIAVI platforms to combine Optical Spectrum Analysis with Ethernet/BERT, OTDR or Wireless RF test, providing a single solution for high-speed WDM service activation and maintenance.

Modules are the smallest and toughest field spectral test solution available today. Combining the ability to program and validate pluggable transceivers in the field enabling faster link activation and improved first time turn-up rate.

Nano OSA Benefits

  • Turn up and verify any new WDM service with confidence (CWDM, DWDM, MWDM, LWDM)
  • Meet future requirements for high-speed service activation, OSA plus Ethernet/BERT test
  • Reduce service turn-up, activation and troubleshooting times
  • Field ready, light, compact and robust
  • Minimal learning time and improved usability for easier operation



Nano OSA Applications

  • Fiber Deep, Remote-PHY, 5G, and C-RAN
  • Amplified 10G/100G+ Metro/Access networks
  • Validate new wavelength routes through MUX/DeMUX
  • Perform OSNR tests on amplified DWDM links
  • Verify channel offset and actual channel spacing



Nano OSA Key Features

  • Smallest full-band and high resolution solution
    • Tests CWDM and DWDM signals (1260-1650 nm)
    • Min. channel spacing 37.5/50/100 GHz (ITU-T G.694)
  • Measures channel power, wavelength, offset and OSNR
  • Drift test application for channel power and wavelength
  • High input power range for testing CATV signals
  • SFP/SFP+ slot for fixed or tunable transceivers

Additional information

Brand

VIAVI Solutions

Type

Spectrum Analyzer
