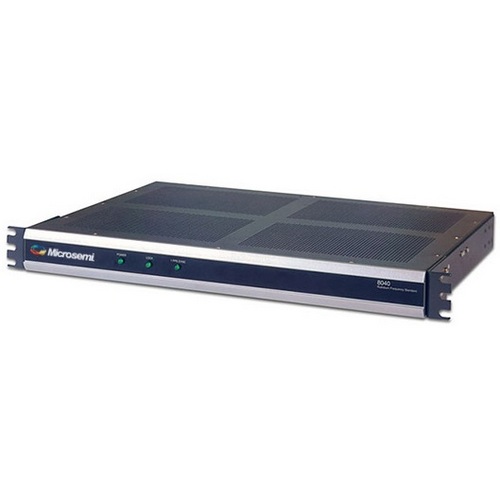

8040C/8040CLN Rubidium Frequency References
The Microsemi 8040C and 8040CLN provide a stable and accurate frequency reference with multiple output signal formats in an easy to install 1U rack mountable chassis
Description
The 8040C/8040CLN delivers atomic clock performance, improved frequency, long-term stability, and configurable RF outputs, built-in GPS disciplining and a RS-232 interface for command and control in the field.
8040C/8040CLN has six outputs, each of which can be user configured to provide a 1, 5 or 10MHz sine or square wave or 1PPS output. The standard configuration for the 8040C has three 10MHz, one 5MHz, one 1MHz and one 1PPS output.
Expandable
Add an optional output card to bring the total output configuration to 12. The option card, like the standard unit, can be configured for any combination of available frequency or format.
Easy GPS Disciplining
The 8040C/8040CLN auto adaptive algorithm allows plug and play connectivity for easy GPS disciplining with a 1PPS input for improved frequency accuracy and long-term stability.
Adaptable
The 8040C/8040CLN is field configurable so it can adapt to support changes in functionality as your system evolves.
Key Features
- Six Configurable Outputs
- RF & Pulse Outputs
- AC Input
- Remote Monitoring & Control
- GPS Disciplining
- Twelve Configurable Outputs (optional)
- Low Phase Noise Multiple Output Signal Formats (optional)
Additional information
| Brand | Microsemi |
|---|
