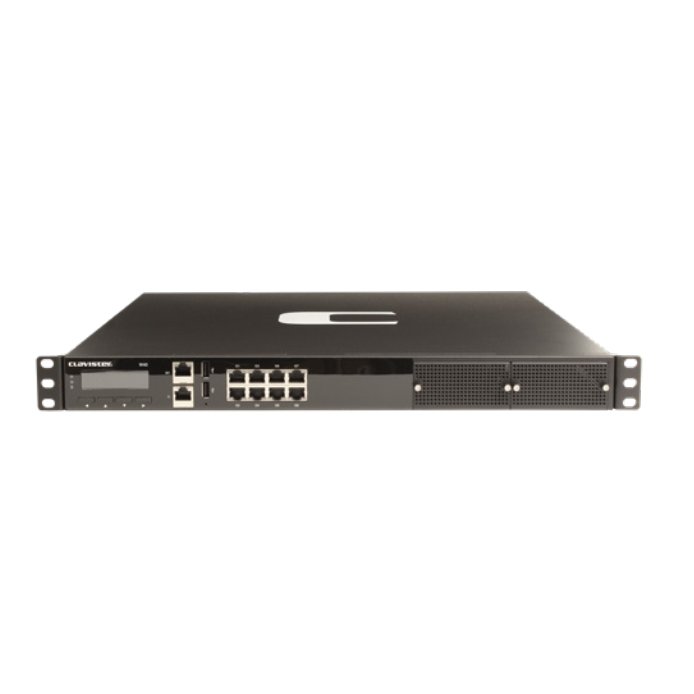

Clavister RackMount NetWall W-series

The Clavister W-series is a set of beautifully designed next-generation security appliances, targeted towards remote/branch offices and as entry-level enterprise security gateways.


The Clavister W-series delivers next-generation firewall security at a break-through price point, offering advanced routing flexibility and comprehensive features without compromising security. The Clavister W-series NetWall is an ideal solution for any organization that need premium network security in a cost-effective package.


  • Cost-effective next-generation firewall for larger remote/branch office or for entry level enterprise solutions, housed in a sleek 1U 19” rack appliance, delivering up 10 Gbps of firewall performance
  • Next-generation firewall services, including Clavister True Application Control, Clavister Content Security Services and User Identity Awareness
  • Powerful stateful firewall with deep-packet inspection gives you a high level of security
  • Flexible, dynamic routing and connectivity with support for link aggregation
  • Built-in support for both IPsec and SSL VPN offers easy to use remote connectivity
  • Centralized Security Management System included free-of-charge in the Clavister Security Subscription package
  • High-end network infrastructure, such as traffic management, High Availability, server load balancing and WAN load balancing, are included with Clavister Subscriptions
  • The perfect solution for remote offices,branch offices and entry-level enterprises

Compare the different NetWall platforms and choose the rack-mount model that best fits your specific needs.

NetWall W20 NetWall W30 NetWall W40 NetWall W50
Standard Pro Standard Pro Standard Pro Standard Pro
Firewall performance 4 Gbps 6 Gbps 6 Gbps 10 Gbps 10 Gbps 20 Gbps 25 Gbps 55 Gbps
VPN Performance (Gbps) 1 Gbps 1.5 Gbps 1.5 Gbps 2 Gbps 2 Gbps 4 Gbps 5 Gbps 8 Gbps
Concurrent connections 500 750 750 1,000,000 1,000,000 2,500,000 5,000,000 8,000,000
Concurrent VPN Tunnels (IPsec) 500 1 1 2 2 4 5 10
Ethernet interfaces 6x 1GbE (RJ45) 6x 1GbE (RJ45) 8x 1GbE (RJ45) 1x 1GbE (RJ45)
Expansion Slot No 1 2 4
Compatible Modules 8 x 1GbE (RJ45 and SFP), 2 or 4 x 10GbE (SFP+)
Virtual Interfaces (IEEE 802.1q/802.1ad) 256 512 1,024 2,048 2,048 4,096 4,096 4,096
Virtual Routers 25 50 50 100 100 250 250 500
High Availability Support Yes
Clavister OS Clavister NetWall cOS Core
Hardware Specifications
Form-Factor 1U 19″
Power-supply 100-240VAC, 50-60 Hz Redundant & Hot-Swappable 100-240VAC, 50-60 Hz
Recommended Use-Cases
Typical environments Medium sized offices, regional offices Enterprises, Datacenters, xSPs


Additional information
