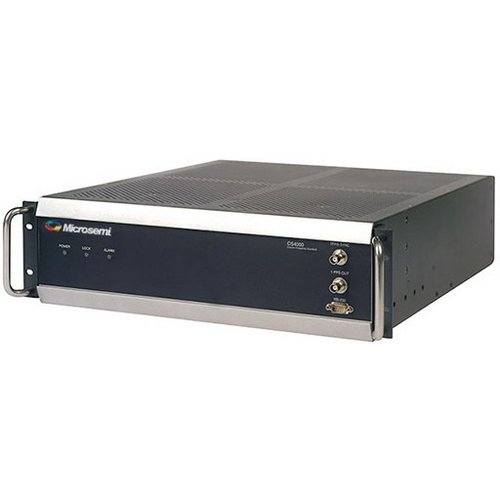

Cs4000 Cesium Frequency Standard

  • Frequency accuracy up to ±1e-12
  • Up to 5e-14 long term stability
  • 6 RF outputs: 1MHz, 2x5MHz, 2x10Mhz and 100kHz
  • Three 1PPS outputs
  • Two 1PPS inputs
  • Optional battery backup
  • Ethernet interface and Time of Day
  • MTBF: >145,000 hours
  • Caesium clock

Description

Designed for precision applications requiring high stability, low noise RF and 1PPS reference signals

The Microsemi Cs4000 provides exceptional performance in a configurable 3U rack mount chassis. The Cs4000 meets the challenges of laboratory standards, satcom terminals, mobile communications systems and a wide variety of test and measurement applications.
The Cs4000 is designed for high precision timing and frequency applications requiring high stability, low noise RF and 1PPS reference signals.

Remote Interface

The Cs4000 provides an RS-232 port that allows the user comprehensive monitor and control access via ASCII commands or via Microsemi’s Monitor 3 windows based utility program.

Provides Standard and Custom Output Signal Formats

  • Standard outputs include 100kHz, 1, 5, 10MHz and 1PPS.

Key Features

  • Standard Features
  • CsIII Technology
  • AC & DC Inputs
  • Internal Battery Back-up
  • 30 Minute Warm-Up to Full Specification

Robust Warranty

The Cesium 4000 comes standard with a 1-year electronics warranty and 8-year tube warranty.

Additional information

Brand

Microsemi
