Description

Industrial-Grade 5G Outdoor ODU

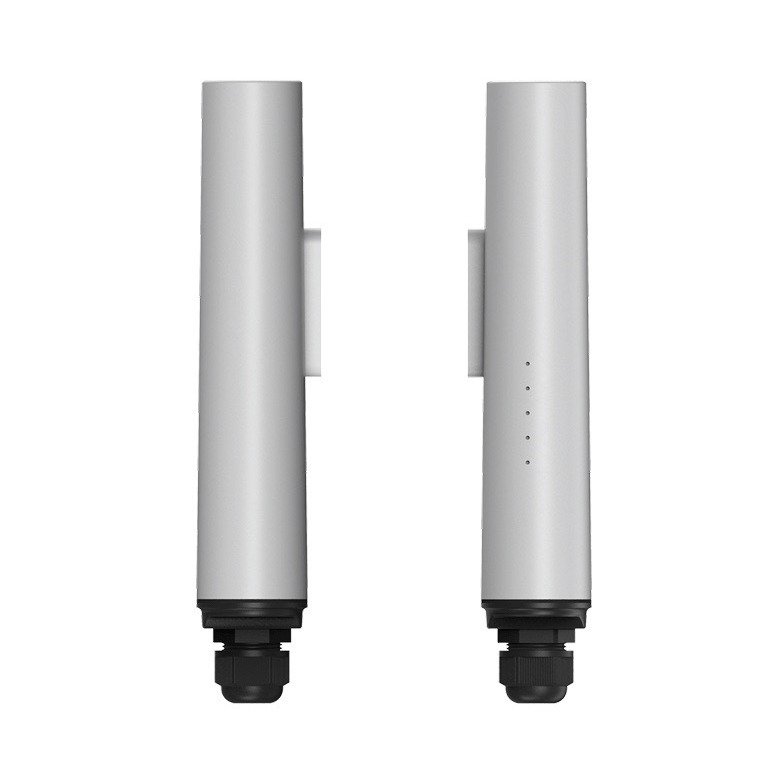

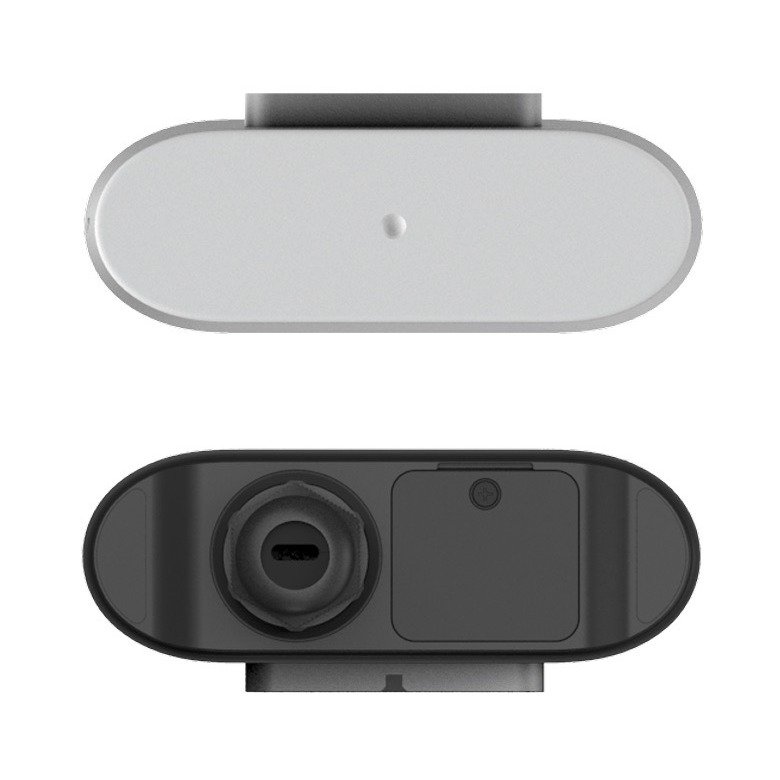

The Wewins C120 is a rugged, high-performance 5G Sub-6 outdoor CPE designed to deliver stable, ultra-fast wireless broadband in scenarios where indoor signal reception is limited or unreliable. Built on the Qualcomm Snapdragon X55 platform and compliant with 3GPP Release 15, it supports both 5G SA and NSA modes, with seamless fallback to 4G LTE. Featuring an IP65-rated rugged enclosure, high-gain integrated antenna system, and PoE power supply, the C120 is ideal for home FWA, rural broadband, enterprise networking, and outdoor deployments requiring carrier-grade stability.

Detailed Description

The Wewins C120 is a high-performance 5G Sub-6 outdoor CPE designed to deliver stable, ultra-fast wireless broadband in scenarios where indoor signal reception is limited or unreliable. Built on the Qualcomm Snapdragon X55 platform and compliant with 3GPP Release 15, the C120 supports both 5G Standalone (SA) and Non-Standalone (NSA) architectures, with seamless fallback to 4G LTE, ensuring continuous connectivity across diverse network environments. Featuring an IP65-rated rugged enclosure, high-gain integrated antenna system (4×4 DL MIMO, 2×2 UL MIMO), 2.5 Gigabit Ethernet with PoE support, and flexible mounting options, the C120 is engineered for reliable outdoor operation. Key features include an advanced antenna system with 4 omni-directional and 2 directional high-gain antennas, comprehensive remote management capabilities (Web UI, FOTA, TR069, LwM2M), enterprise-grade security with secure boot and firewall protection, and a wide operating temperature range with 6 kV lightning protection.

Application Scenarios

The Wewins C120 is the ideal solution for:

• 5G Home FWA (Fixed Wireless Access): Delivers fiber-like broadband speeds to homes in areas without cable or fiber infrastructure.
• Rural and Suburban Broadband Coverage: Bridges the connectivity gap in remote and underserved locations with reliable 5G/LTE links.
• Enterprise and Commercial Networking: Provides primary or backup high-speed connectivity for businesses, retail, and branch offices.
• Industrial IoT and Smart Cities: Supports outdoor surveillance, traffic systems, environmental monitoring, and industrial automation with secure, low-latency connections.
• Temporary or Backup Outdoor Networking: Ideal for construction sites, emergency response, events, and pop-up deployments requiring rapid setup and robust performance.
• Energy and Utilities: Ensures secure, reliable communication for remote energy installations, solar farms, and pipeline monitoring.

Advantages

• Ultra-Fast 5G Sub-6 Connectivity: Supports both 5G SA and NSA modes, delivering high throughput and low latency, with automatic fallback to 4G LTE for uninterrupted service.
• Powered by Qualcomm Snapdragon X55: Built on the proven Qualcomm X55 platform, enabling stable multi-band 5G/4G operation, advanced modulation, and long-term carrier-grade reliability.
• High-Gain Integrated Antenna System: Equipped with 8 omni-directional antennas for full 360° coverage (5.5 dBi) and 2 directional antennas optimized for Sub-6 high-band frequencies (9 dBi, including N40/N78), significantly improving signal quality in weak-coverage areas.
• Outdoor-Ready Rugged Design: IP65-rated dustproof and waterproof enclosure with 6 kV lightning protection, supporting stable 24/7 operation in harsh outdoor environments from -40°C to 55°C (with preheating mechanism).
• 2.5 Gigabit Ethernet with PoE Support: Features a 2.5GE LAN port with IEEE 802.3AT PoE, enabling power and data transmission through a single Ethernet cable for simplified installation and reduced wiring costs.
• Flexible Mounting & Easy Installation: Supports wall-mounted and pole-mounted installations with adjustable tilt angles (±50°, 100° total). BLE 5.3 (nRF52833) assists in identifying optimal signal direction for best performance.
• Remote Management & OTA Updates: Supports Web UI, FOTA, TR069, and LwM2M, enabling remote monitoring, configuration, diagnostics, and firmware upgrades for carrier and enterprise deployments.
• Enterprise-Grade Security: Implements secure boot, firewall protection, SIM lock, PCI lock, and access control mechanisms to ensure secure and reliable network operation.
• Global Compatibility & Customization: Supports global 5G NR Sub-6GHz bands and 4G LTE bands with full OEM/ODM customization options including firmware, branding, packaging, and frequency band tuning.

Technical Specifications
