Description

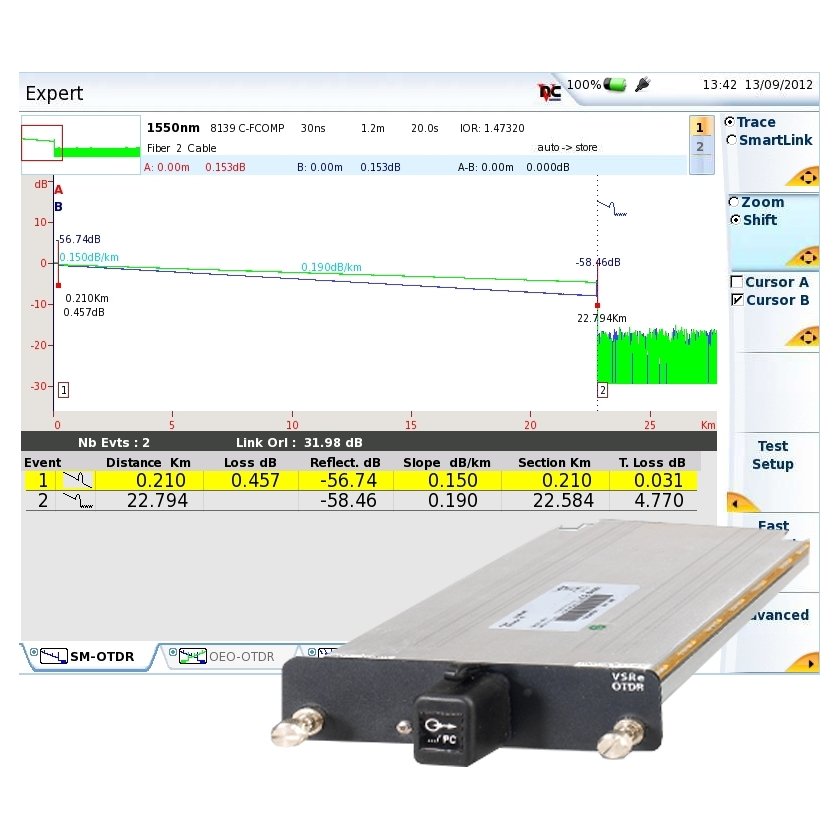

VIAVI 8100-Series OTDR EVO family includes the “8100A”, “8100B”, the “8100C”, and the “8100D” modules for any singlemode or multimode OTDR application and test scenario from very short to ultra-long distances. Learn more about OTDR Testing and Fiber Testing.

The optical performances of the 8100-Series OTDR modules combined with the complete suite of T-BERD/MTS platforms testing features ensure that any testing job is done right the first time.

8100 OTDR Modules Benefits

• Industry leading dead zone performance which allows full characterization of element events on a fiber link 2 meters apart (EVO family)
• Combines OTDR, power meter and continuous light source for added testing flexibility (singlemode wavelengths)
• Avoids the risk of live signal interference or damage to the optical transmitter when performing an OTDR test with instantaneous automatic traffic detection
• Eliminates OTDR interpretation errors with Smart Link Mapper (SLM) without compromising on test time

8100 OTDR Modules Applications

• Access, Metro, Long Haul and Ultra Long Haul fiber network characterization
• Tier 2 certification of enterprise and data center networks
• Advanced qualification and troubleshooting of FTTH/PON networks.
• Core fiber network upgrade to 40 and 100Gb/s
• Fiber Monitoring in and out-of-service
• Fiber installation/deployment certification and troubleshooting for Submarine Cable Networks

8100 OTDR Modules Key Features

• Up to 50 dB dynamic range and 256,000 acquisition points
• ≤ 65 cm Event Dead Zone and 2.5m Attenuation Dead Zone
• Integrated CW light source and broadband power meter on OTDR port (singlemode wavelengths)
• Built-in encircle flux multimode source compliant with IEC 61280-1-4 and TIA-526-14-B
• PON optimized to test up to 1×128 splitter type
• Combined singlemode/multimode version
• Single-/Dual-/Tri-wavelength versions with 1310, 1490,1550,1625, and 1650nm
• Single connector port for 1310, 1550 and in-service1650nm wavelength
• Available in FiberComplete version for automated bi-directional OTDR, IL and ORL measurements
