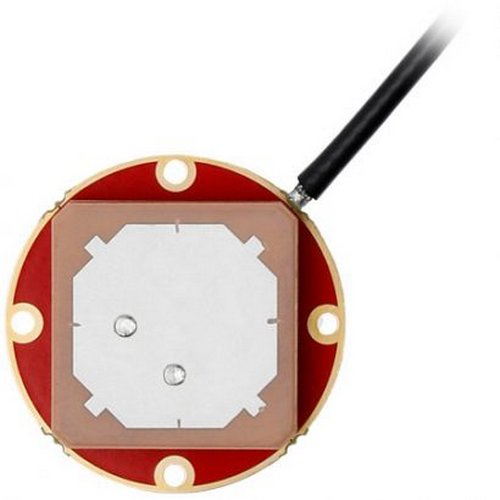

TW1421

The TW1421 employs Tallysman’s unique Accutenna® technology, covering GPS/QZSS L1, GLONASS G1, as well as SBAS (WAAS/EGNOS/GAGAN/MSAS)

Description

Ideal for applications that require high precision positioning and timing in a small form factor, the TW1421 provides superior multi-path signal rejection, a linear phase response, and tight Phase Centre Variation (PCV).

Featuring a compact 25mm dual-feed, wideband patch element with a two-stage Low Noise Amplifier (LNA), the TW1421 provides excellent axial ratio and cross-polarization rejection across the full frequency band.

Tallysman offers custom tuning services to optimize the performance of the TW1421 for any OEM installation environment.

Features

  • Compact Dual Feed Patch Element
  • 1dB bandwidth 1575-1606MHz
  • Very low noise LNA: <1.25 dB
  • <1.5 dB Axial Ratio @ zenith over bandwidth
  • LNA gain: 28 dB typ.
  • Wide Supply voltage: fixed 2.5V to 16V
  • ESD circuit protection: 15KV
  • Temperature Compensated Gain

Benefits

  • Great multipath rejection
  • Increase system accuracy
  • Improved carrier phase linearity
  • Excellent signal to noise ratio
  • Great out of band signal rejection
  • Compact form factor
  • RoHS compliant

Additional information

Brand

TALLYSMAN

Type

Antenna

Antenna type

Single band GNSS

Coverage

GPS L1, GLONASS G1

Mount

OEM / Embedded

Amplifier Gain

28 dB

Connector Options

Many Options, Please Inquire
