Fiber optic test kit FiberXpert 700
Quad Attenuation Measurement Kit for Multimode & Singlemode
Description
FiberXpert 700 – Quad Attenuation Measurement Kit for Multimode & Singlemode

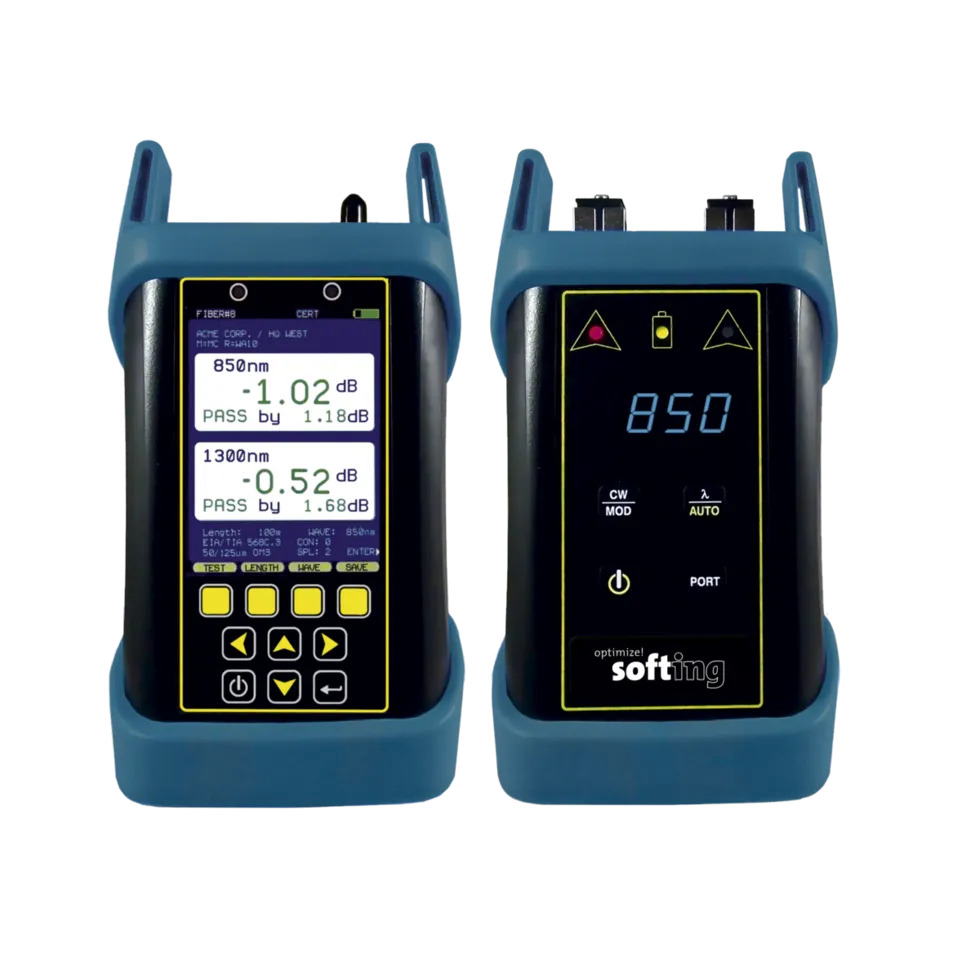

The Softing FiberXpert 700 Quad MM/SM Test Kit is a complete, calibrated Tier 1 solution for certifying both multimode and singlemode fiber optic links. Designed for intuitive, flexible, and fast operation, it provides standardized link certification with automatic wavelength detection and clear PASS/FAIL results on a color LCD. With internal storage for up to 10,000 measurements and the ability to print official test reports via PC software, it is the ideal companion for professional fiber network installation and documentation.
Detailed Description
The FiberXpert 700 Quad MM/SM Test Kit contains all the tools necessary to perform Tier 1 certification (attenuation and length measurement) on fiber optic connections, conforming to common cabling standards like TIA and ISO. The kit includes a calibrated optical power meter and a quad light source covering both multimode (850/1300 nm LED) and singlemode (1310/1550 nm FP laser) wavelengths. A user-friendly link wizard with helpful on-screen graphics guides the user through the setup process. Automatic wavelength detection and data storage significantly reduce test time and eliminate the risk of operator error. Measurement results, up to 10,000, are stored internally and can be transferred to a PC via USB for generating official test reports. The large, clear LCD display shows results in color for instant PASS/FAIL status identification. The kit is powered by a long-life, rechargeable lithium polymer battery.
Applications
The FiberXpert 700 is the ideal tool for:
- Fiber Optic Network Certification: Perfect for performing Tier 1 certification of multimode and singlemode links in LANs, data centers, and campus networks.
- FTTx Installation & Testing: Ideal for verifying loss and continuity in Fiber-to-the-x (FTTx) networks, including Class A, B, and C budgets.
- Continuity & Patch Cord Testing: Suitable for quickly checking fiber continuity and testing patch cords or reference test fibers.
- Quality Assurance Documentation: Used by installers to generate official, printable test reports proving compliance with standards like TIA-568-C.3 and ISO 11801.
- Troubleshooting Fiber Links: Invaluable for measuring optical power and loss to identify problematic connections.
Advantages
- Complete Tier 1 Kit: Includes both power meter and quad light source for comprehensive multimode and singlemode certification out of the box.
- Fast & Error-Free Testing: Automatic wavelength detection and data storage minimize test time and prevent operator mistakes.
- Instant Results: Clear color LCD display shows PASS/FAIL status at a glance, based on user-defined or standard limits.
- Extensive Memory: Stores up to 10,000 measurements internally for large projects.
- Professional Reporting: Generates official test reports directly from the included PC software via USB connection.
- User-Friendly Operation: Link wizard with helpful graphics and intuitive interface make setup and testing simple.
Technical Specifications
| Specification | Details |
|---|---|
| General | |
| Product Name | FiberXpert 700 Quad MM/SM Test Kit |
| Article Number | 237114 |
| Certification Type | Tier 1 Fiber (Multimode & Singlemode) |
| Supported Cabling Standards | TIA-568-C.3, 568.3.D; ISO 11801, 14763-3; Ethernet (1, 10, 40, 100G); FTTH (Class A, B, C); User-defined fixed or calculated budget |
| Optical Power Meter | |
| Display | Color LCD with PASS/FAIL color indication |
| Data Storage | Internal memory for up to 10,000 measurements |
| Connectivity | USB for data download and battery charging |
| Quad Light Source | |
| Output Type (Multimode) | LED |
| Output Type (Singlemode) | FP Laser |
| Center Wavelengths (MM) | 850 nm: 850 ± 30 nm; 1300 nm: 1300 ± 50 nm |
| Center Wavelengths (SM) | 1310 nm: 1310 ± 20 nm; 1550 nm: 1550 ± 30 nm |
| Spectral Width (MM 850nm) | 50 nm |
| Spectral Width (MM 1300nm) | 180 nm |
| Spectral Width (SM) | 2 nm |
| Output Power (Nominal) | MM: -20 dBm; SM: -10 dBm |
| Output Modes | CW / Modulated (for both MM and SM) |
| Initial Accuracy | ± 0.1 dB (for all wavelengths) |
| Laser Safety | Class 1M (IEC 60825-1) |
| Power & Environmental | |
| Battery Type | Rechargeable Lithium Polymer |
| Battery Life | Up to 150 hours |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | 0 to 75 °C |
| Dimensions (each unit) | 2.87 x 4.42 x 1.25 in (72.9 x 112.3 x 31.8 mm) |
| Weight (each unit) | 10 oz (284 g) |
| Connector Type (standard) | SC (with universal adapters for 1.25 mm and 2.5 mm ferrules included) |
| Compliance | Conforms to EN 61326-1, EN 61010-1; Calibrated wavelengths NIST Traceable |
| Scope of Delivery | |
| Main Components | 1 optical Power Meter, 1 quad light source |
| Adapters & Cables | 1 universal adapter 1.25 mm ferrule, 1 universal adapter 2.5 mm ferrule, 2 USB download cables (also for battery charge) |
| Case & Protection | 1 soft carrying case, 2 protective rubber boots |
| Documentation | 1 calibration certificate, 1 quick reference guide |
| Optional Accessories (Examples) | |
| Fiber Kits | Multimode SC/LC cable kits, Singlemode SC/LC cable kits (each include test cords, couplings, and mandrel) |
| Individual Items | Mandrel for MM glass fibers (228018), various SC/LC test cords |
Additional information
| Brand | Softing |
|---|---|
| Type | LAN Tester, Optical test kit |
