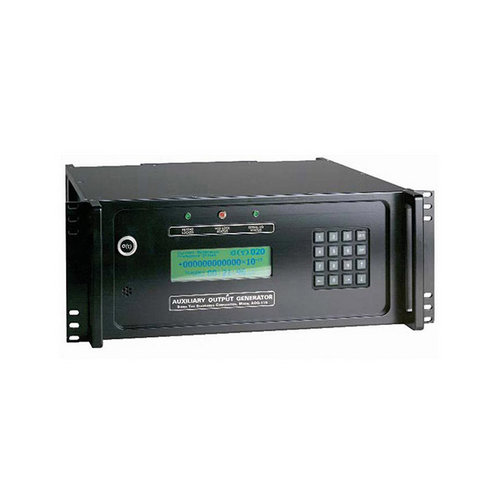

AOG-110

Description

Microsemi”s Auxiliary Output GeneratorTM, designated the AOG-110, solves performance and capability issues associated with the use of high stability frequency standards.
Until now, intermediate offset generators that extended a standard”s frequency range without a performance sacrifice were difficult or impractical to obtain. Now the AOG-110 is available with a 5 MHz output, programmable over a broad frequency range with extremely high resolution and precise phase control at an economical price.

Key Features

  • 5 MHz Low Phase Noise Outputs
  • Output Phase Offset Programmable to 1 Picosecond
  • Output Frequency Programmable to 1.0E-19 Fractionally Over 5.0E-8 Range
  • Temperature Control Insures Thermal Stability
  • RF Subsystem Developed from Hydrogen Maser Technology
  • Second Generation Microprocessor Control
  • Digital Phase and Frequency Control Menu Driven Interface with Keypad Access
  • LCD Display Provides Easy Access to Configuration and Performance Information
  • Full System Control via RS-232 Compatible Interface
  • Password Protected Remote Operation Provides Security
  • Absolute and Relative Frequency Control
  • Dual-Mode, Timed Frequency Control Allows Interval Frequency and Final Frequency Settings
  • Output Relative Phase Control Over User Defined Intervals
  • Suspend and Resume Available on Programmed Intervals
  • Real-Time Clock Set and Adjust

Additional information

Brand

Microsemi
