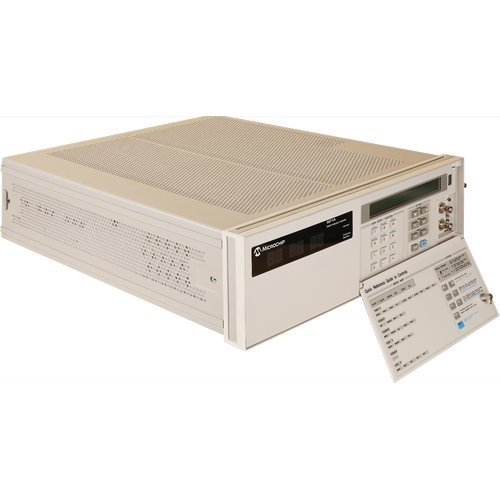

5071A Cesium Frequency Standard
- Frequency Accuracy up to ±5e-13
- Long term stability up 1e-14
- Up to 6 RF and 3PPS outputs
- Up to 2 1PPS inputs
- Battery backup and Time of Day
- 10 year warranty on standard tubes
- 5 year warranty on high performanc tubes
- MTBF: >160,000 hours
- Caesium Clock
Description
Unsurpassed accuracy, stability and reliability for demanding laboratory and field applications
Accurate, stable, and capable of delivering extremely predictable time and phase for long periods, the 5071A meets the needs of leading-edge metrology and calibration labs. Used with GPS systems, the 5071A provides master clock integration for telecommunication, satellite communication, and navigation systems.
Microsemi’s 5071A primary frequency standard delivers exceptional frequency stability. Thanks to a stability specification for 30-day averaging time, the 5071A can keep extremely predictable time and phase for long periods. Combined with a GPS timing receiver the 5071A primary frequency standard can produce a highly robust, inexpensive, and redundant frequency and time system.
Key Features
Frequency accuracy to 5 x 10-13
The intrinsic accuracy of the cesium beam tube assures that any 5071A Option 001 will power up to within 5 x 10-13 of the accepted standard for frequency. This is achieved under full environmental conditions in 30 minutes or less- and without the need for any adjustments or alignments.
Long-term stability better than 1 x 10-14
The 5071A Option 001 high-performance cesium beam tube guarantees stability to be better than 1 part in 10-14 for averaging times of five days or greater. The 5071A is the first cesium standard to specify stability for averaging times longer than 100,000 seconds (approximately one day).
Easy to use with automatic startup and intuitive menu structure
Automatic startup is simple and requires no adjustments. A logical menu structure simplifies front-panel operations, selections, and status reporting. The 5071A can be operated and maintained anywhere. All controls are programmable, status can be checked remotely, and no adjustments or alignments are necessary during operation. An internal battery provides 45 minutes of backup in case of AC power failure.
Proven Reliability
The 5071A has demonstrated an average mean time between failures (MTBF) of greater than 160,000 hours since its introduction in 1992.
Robust Warranty
The 5071A Standard Performance comes standard with a 2-year electronics warranty and 10-year tube warranty.
Additional information
Brand | Microsemi |
---|
