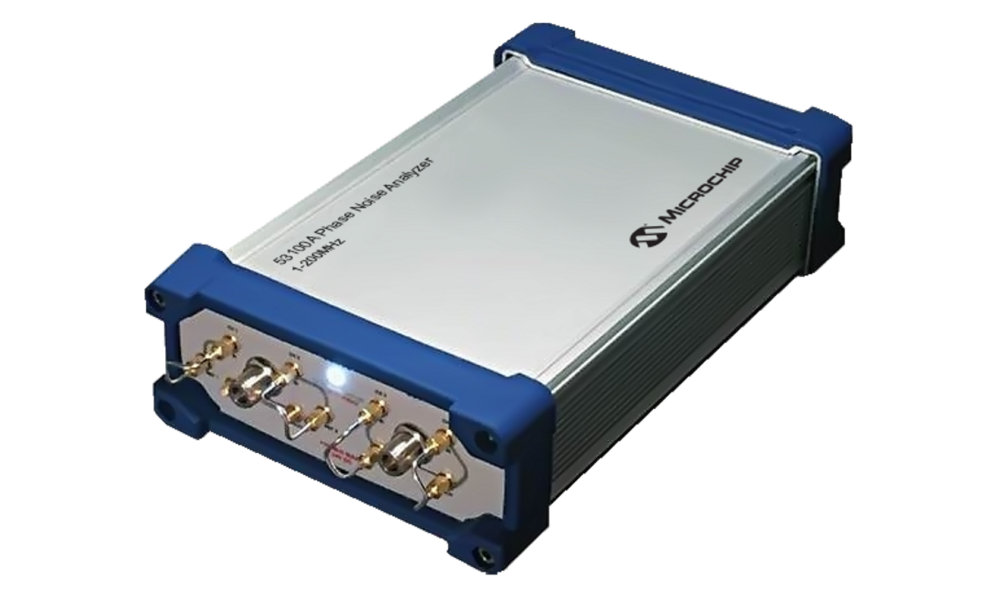

Phase noise analyzer 53100A

Phase noise and frequency stability analyzer 53100A


Measures the amplitude, phase and frequency stability of high-performance RF sources. Independent input and reference frequencies from 1 MHz to 200 MHz. Absolute frequency counts at 13+ digits per second, 17 digits maximum. Allan deviation (ADEV) typically less than 5E-14 at t=1s. Modified Allan deviation (MDEV), Hadamard deviation (HDEV), and time deviation (TDEV) measurements. Phase noise and AM noise measurements at offsets from 0.001 Hz to 1 MHz and levels typically below -175 dBc/Hz (10 MHz floor). RMS-integrated time jitter, residual FM, and SSB carrier/noise ratio measurements. Ultra-low Noise Floor: -142dBc/Hz @ 1Hz, -175dBc/Hz floor typ. at 5MHz.

Standard shipment package includes:
– USB 2.0 cable, A(m) / B(m)
– Power supply (50/60 Hz, 100 to 240V)
– (Qty= 2) N(m) / BNC(f) coax adapters
– (Qty=5) SMA(m) / SMA(m) coax jumpers, 1 inch (25.4 mm) metal semirigid (preinstalled)
– PC SW TimeLab
– User Manual
– Remote operations manual

53100A data sheet
