RCS 100 DAB Monitoring platform
Gsertel’s RCS DAB is a network professional monitoring platform that allows the remote, proactive and real-time DAB/DAB+ digital radio signal monitoring, both at RF and transport levels.
Description
Gsertel’s RCS DAB is a network professional monitoring platform that allows the remote, proactive and real-time DAB/DAB+ digital radio signal monitoring, both at RF and transport levels.

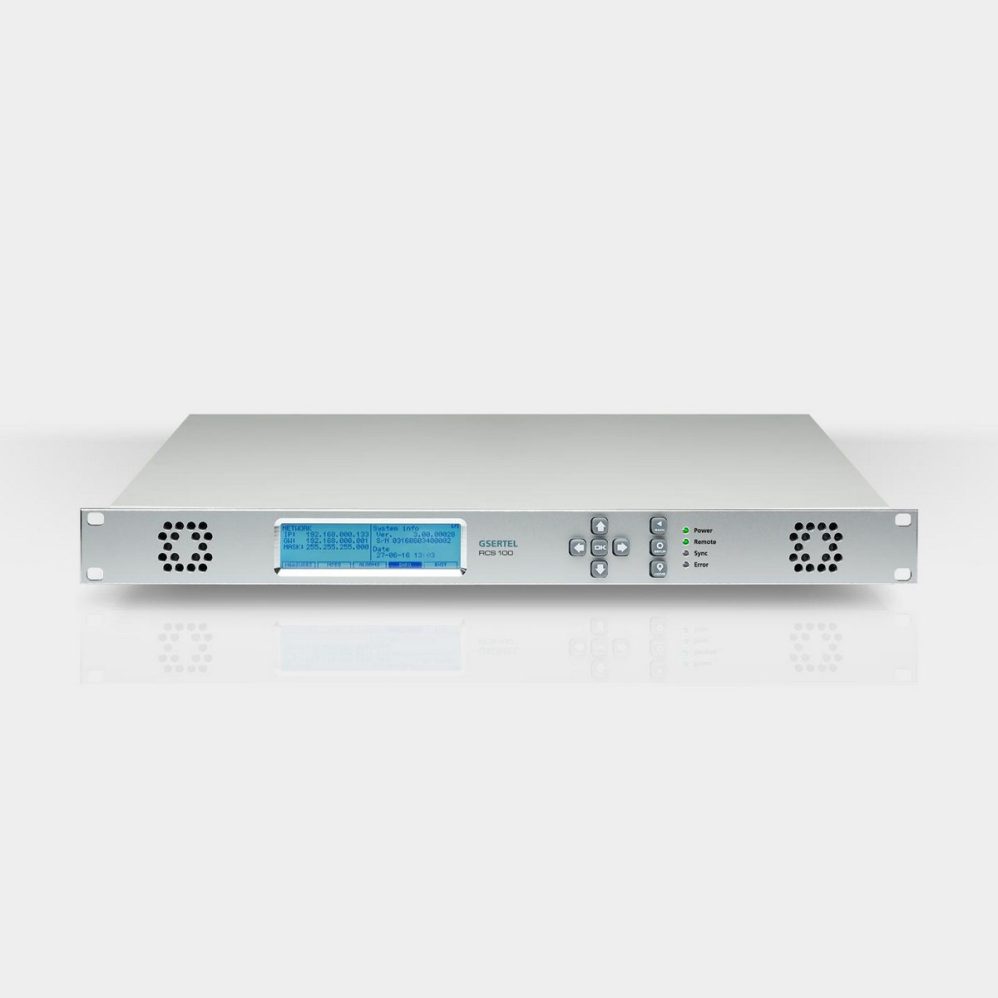

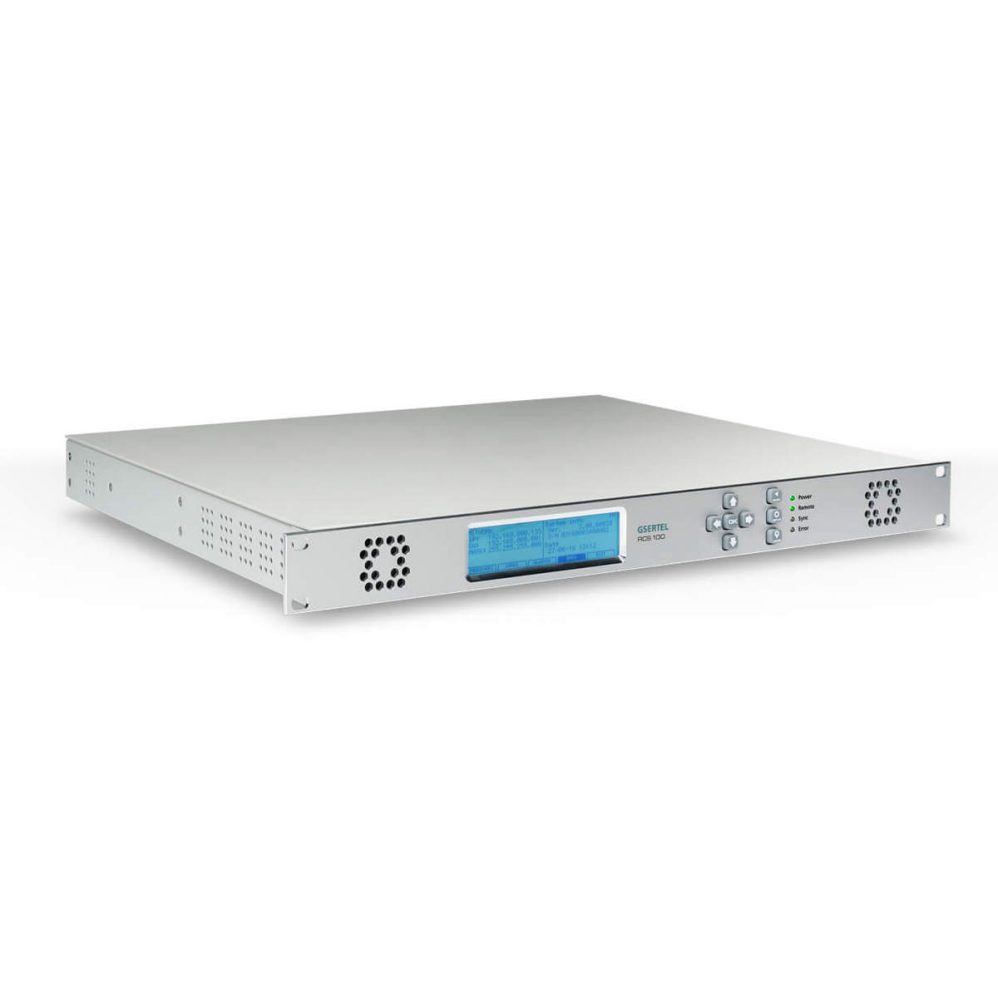

With a compact format, 1RU, all the processing and analysis necessary to obtain the monitoring results is done on the equipment, not needing any additional element except a standard web browser to display the information.
RCS DAB is designed for a 24×7 monitoring signal, allowing to ensure the availability of services in a DAB/DAB+ network.
The intuitive web interface of the RCS, which allows an easy and quick access to all functions, coupled with unique features such as the powerful spectral analysis and capabilities of streaming or ETI (Emsemble Transport Interface) signal recording, make the RCS DAB an ideal solution for headend monitoring, transmission sites or locations on the field.
Features
Connectivity

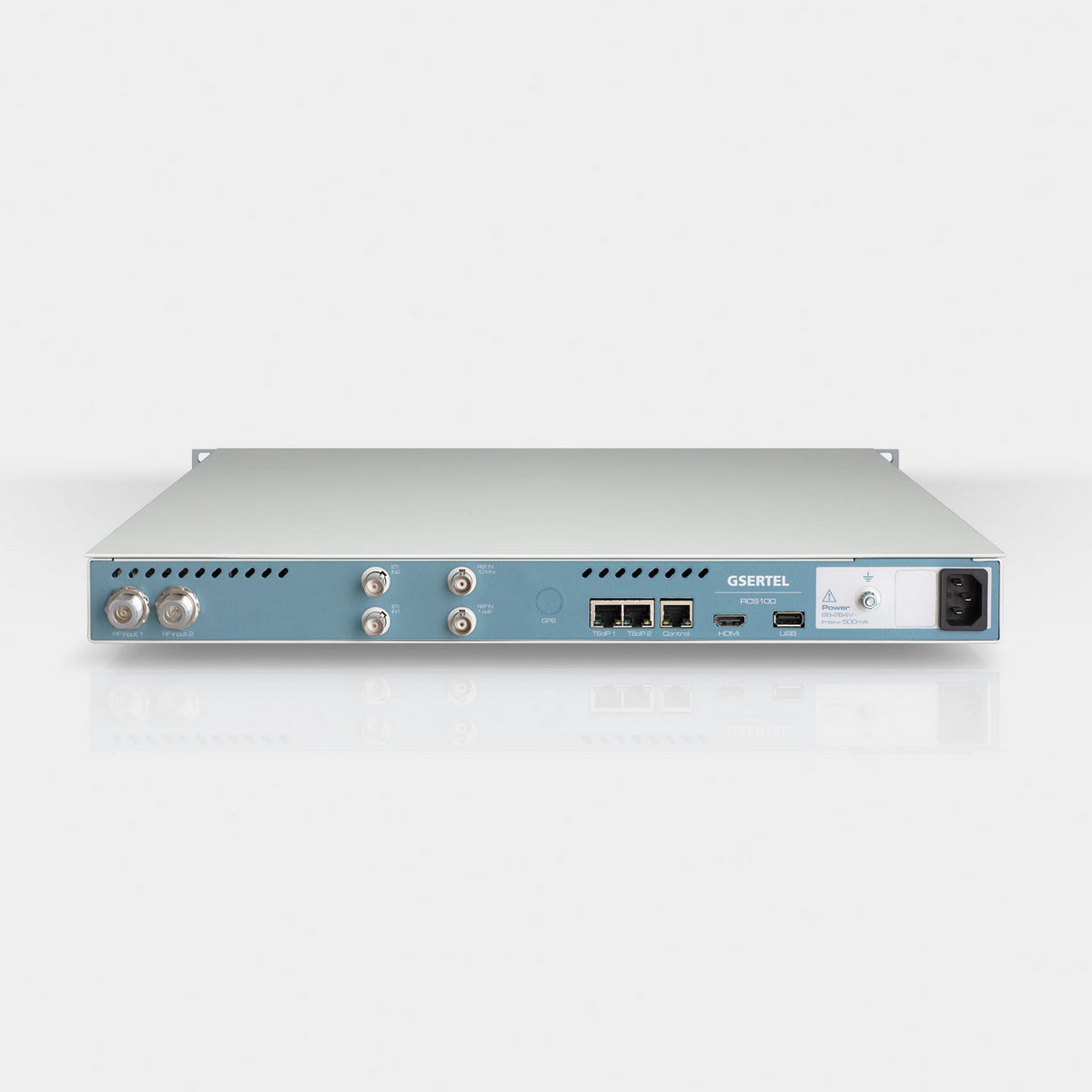

- Signal inputs: 1 x RF, 1 x ETI (optional 1xRF+1xETI), 1 x IP GE RFJ45 (up to 4 EDI), 1 x (Backup) GE RJ45.
- Synchronism: 1 PPS, 10 MHz.
- Ethernet (FE) port for management.
- HDMI output.
- USB port.
RF Analysis
- Signal quality measures: SNR, FIC MER, MSC MER, FIC BER, MSC BER, Shoulders.
- Analysis by channel or multiple channels polling.
- Real-time spectrum.
- Constellation representation.
- Alarm log (real time) and representation (temporal evolution).
ETI Analysis
- Detailed analysis of all the services.
- Services Tree View.
- FIG tables decoding.
- ETI-LI recording.
- SlideShows visualisation.
- Audio streaming via IP.
Advanced features
- Simultaneous and real-time processing of all inputs (300 Mbps maximum).
- “All in One” screen that allows analyzing at a glance the status of a channel from several points of view: radiofrequency, transport and alarms.
- ETI-LI Analysis.
- Advanced measure of echoes, with masks in amplitude and delay.
- Full band spectrum analyzer (5MHz-1GHz) with mask function and automatic alarm.
- SFN drift measurement.
- Accurate measurement (<10 Hz) of the frequency Offset.
- Powerful historical analysis of measurement and analysis of alarms.
- ETI recording.
- Remote control application in HTML5.
- Full management through SNMP v2.0.
- Electronic Program Guide
- Loudness metering according EBU Tech Doc 3341
- Audio Silence Detection
- QoS measures and alarms
- Conditional Access Module (CAM) support.
Additional information
Brand | Gsertel |
---|
